Glue sprayed cotton production lines

Production process:
①Bale opener →Pre-opener→Chamber blender→Fine opener→ vibration feeder →Carding machine→Cross lapper →Drafter→Calender→winder.
Function

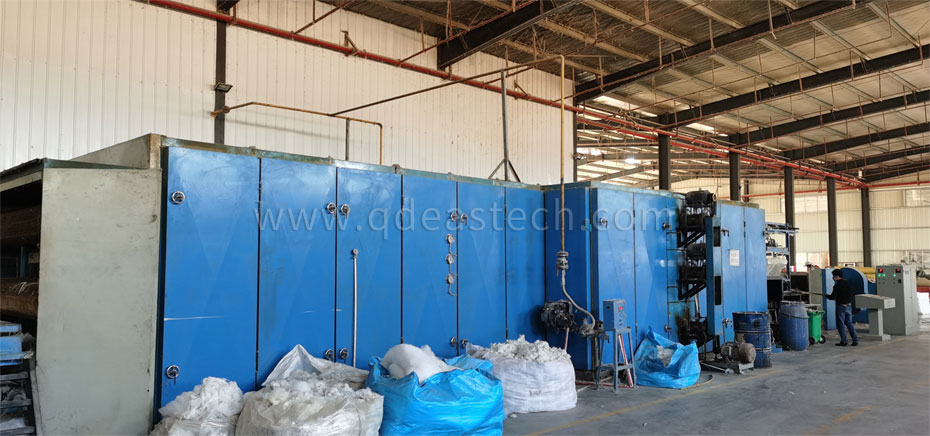

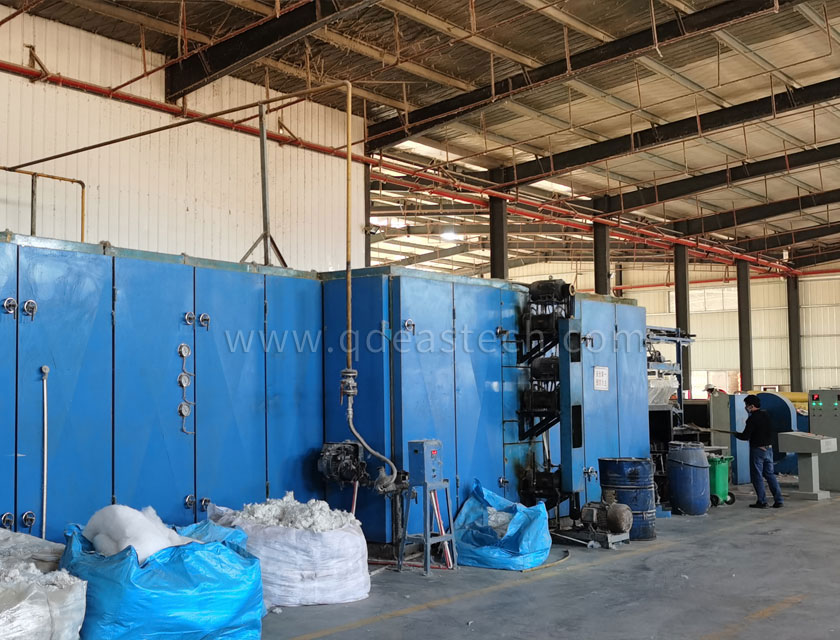

②This machine unit is used to dry cross laid material with surface&bottom chemical treatment to bond the material by hot air penetration.
Main Specification
③Working width: 3500-6500mm
④Heating Chamber Length: 8m ,10m,12m  (3layers)
⑤Heating temperature: 0-260℃
⑥Working speed: 0-20m/min
⑦Heating source: Hot oil circulation, gas heating by burner, diesel oil heating by burner
⑧Installed power: 110KW
Characteristics
⑨Compact design for heating chamber to achieve the best heat energy utilization.
⑩The spraying section is equipped with transparent cover to protect workshop environment from spray diffusion.
⑪Unique design for thermal insulation layer so as to achieve the best insulating result, reducing heat loss.
