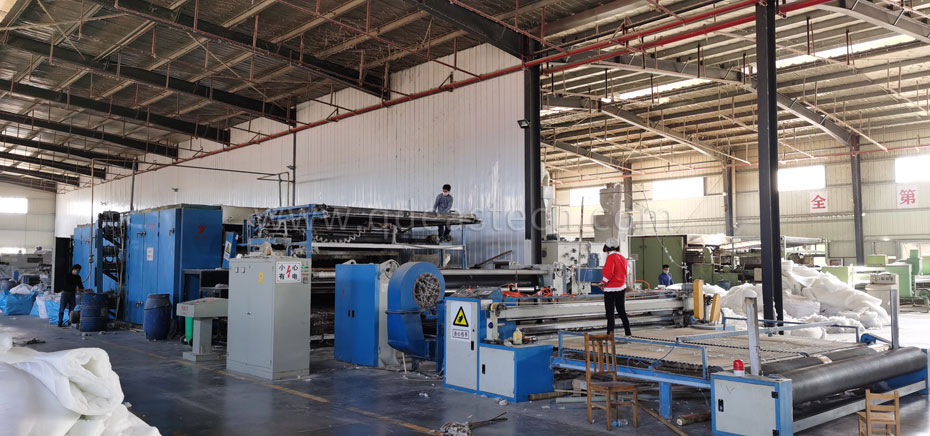

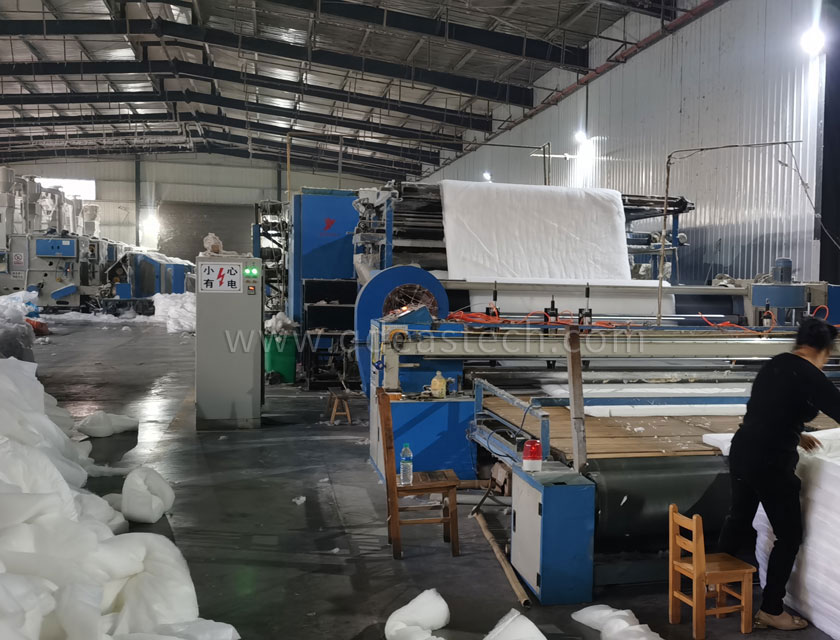

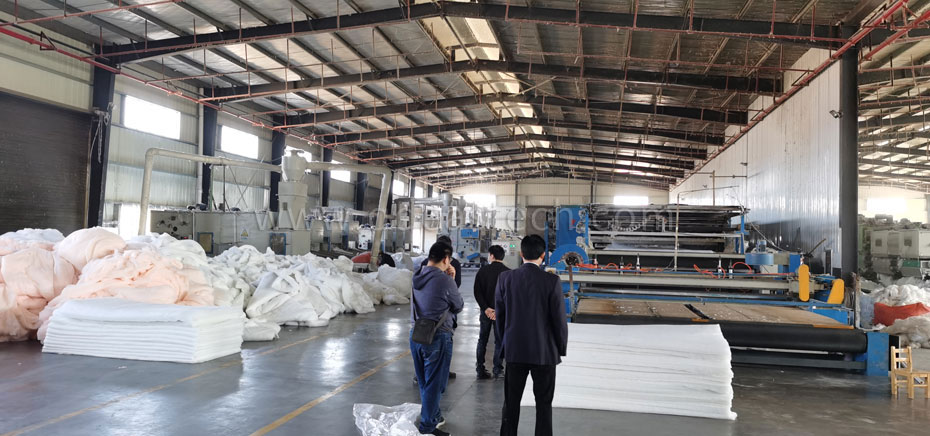

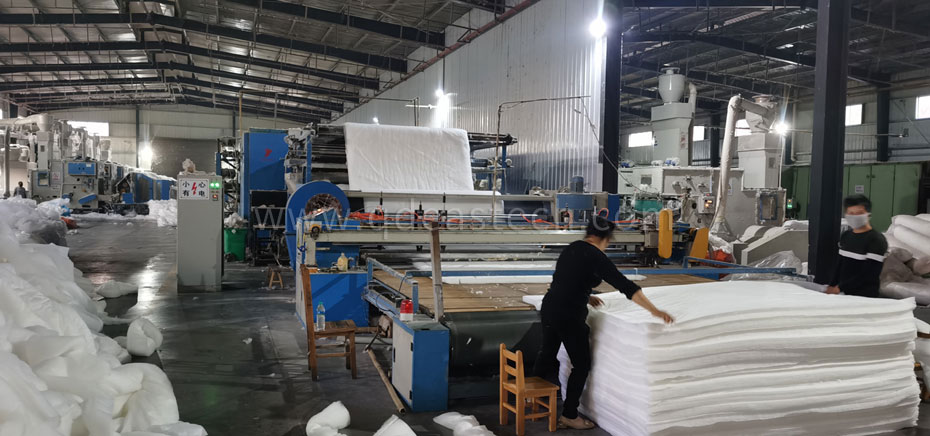

Silk like cotton production lines

Production process:
①Bale opener →Pre-opener→Chamber blender→Fine opener→ vibration feeder →Carding machine→Cross lapper →Drafter→spray glue thermal bonding oven→Calender→winder.
②It is suitable for clothing thermal insulation filling, thin mattress, agricultural cold proof and thermal insulation quilt filling, cold proof clothing filling materials, sleeping bag thermal insulation filling and summer cool quilt.
Main Specification
③Working width: 3500-6500mm
④Heating Chamber Length: 8m ,10m,12m  (3layers)
⑤Heating temperature: 0-260℃
⑥Working speed: 0-20m/min
⑦Heating source: Hot oil circulation, gas heating by burner, diesel oil heating by burner
⑧Installed power: 110KW
Characteristics
⑨Compact design for heating chamber to achieve the best heat energy utilization.
⑩The spraying section is equipped with transparent cover to protect workshop environment from spray diffusion.
⑪Unique design for thermal insulation layer so as to achieve the best insulating result, reducing heat loss.
