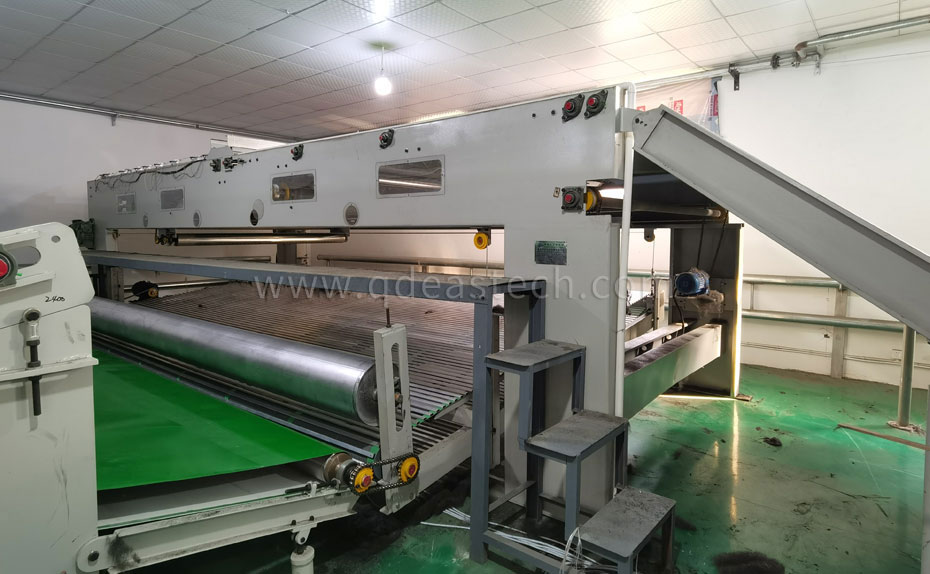

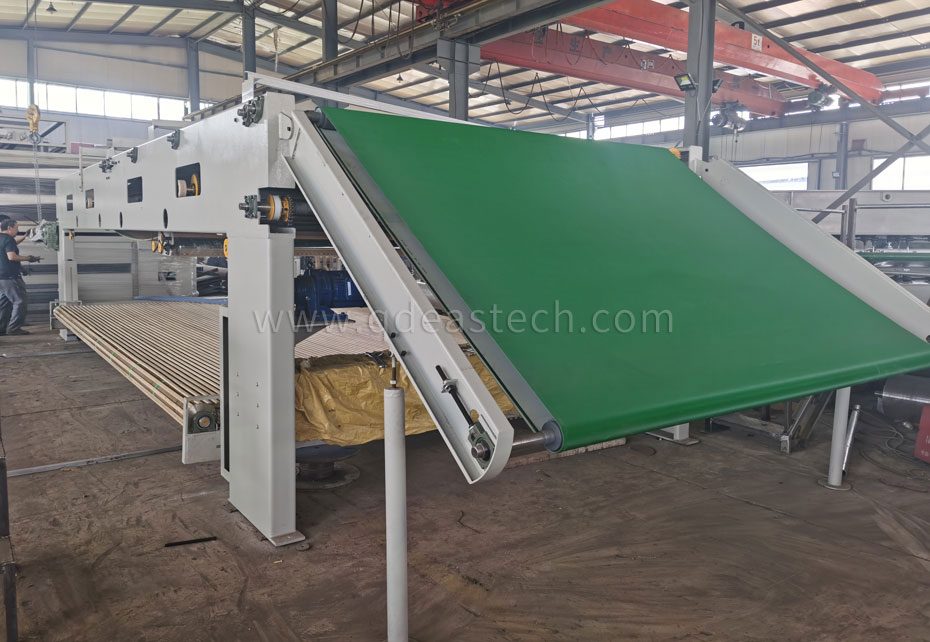

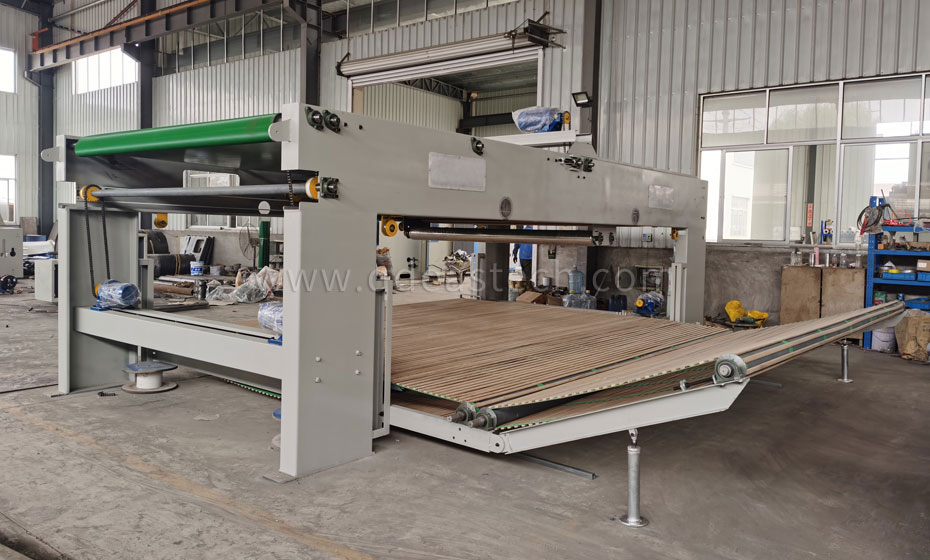

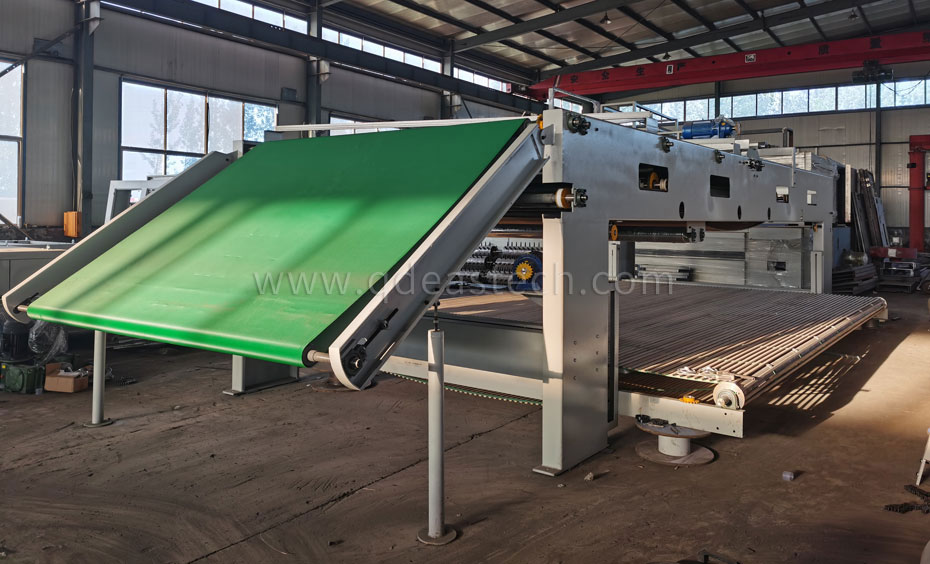

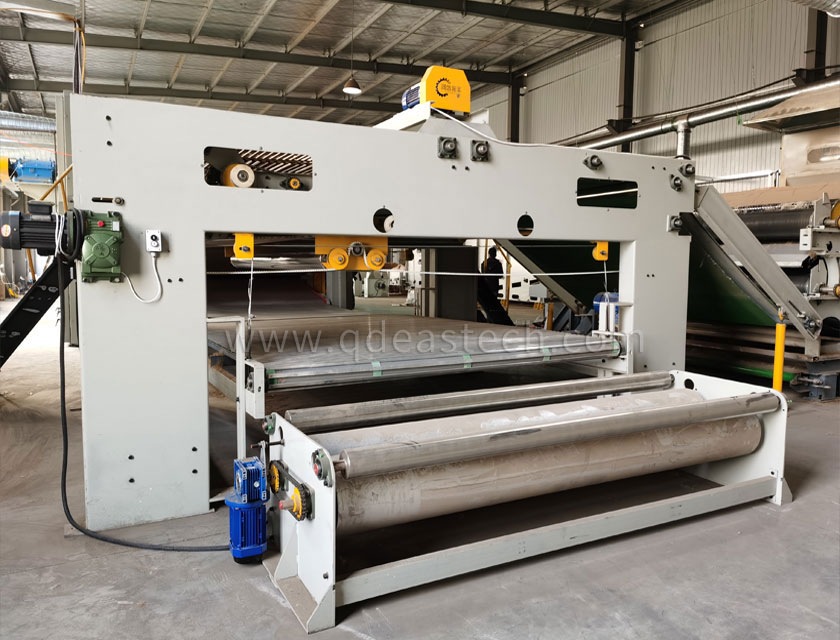

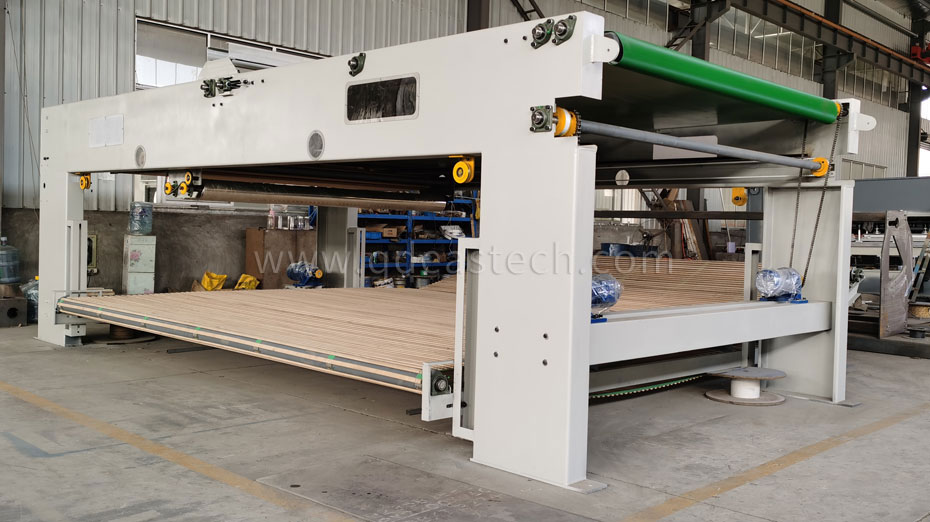

Cross Lapper

①This system is used to lay the webs from carding machine. The machine can produce the weight and thickness of the net layer that customers need.
②Options to enter desired layers.
③Height adjustment capability for bottom conveyor.
④Variable frequency speed control for the following parts:Bottom curtain(Outputting curtain)，Reciprocating curtain，Ring curtain，Inputting Curtain.
⑤PLC controller to ensure the uniformity of the Lapping, the weight error is small .
⑥Bottom curtain is provided with a compressed cotton roller, bottom curtain height can be adjusted.
⑦Set travel switch to prevent running off the big frame.
⑧Inputting width :2200mm-4000mm
Web laying speed =15-50m/min
Delivery width=2000mm-10000mm
Delivery speed=0-15m/min
Power:7.4 kw-20kw
