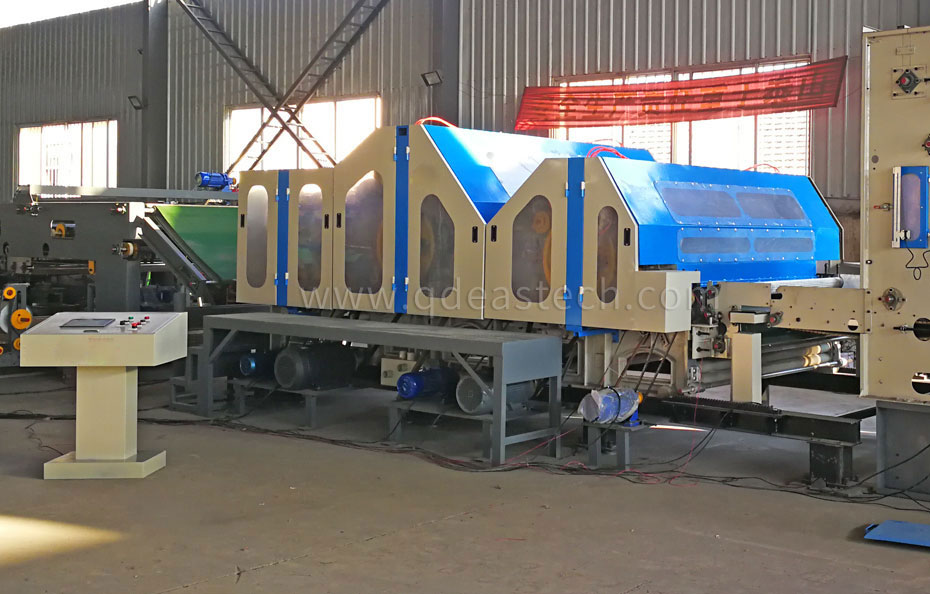

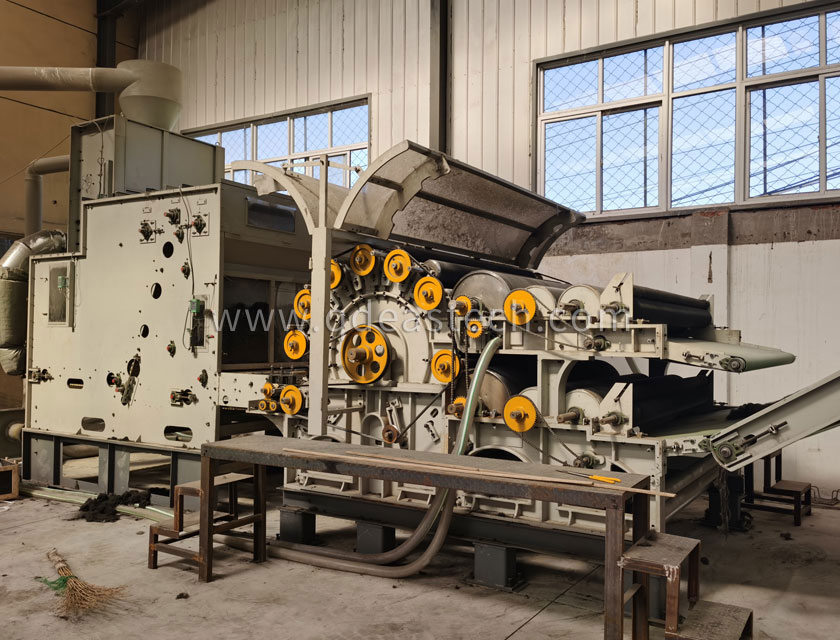

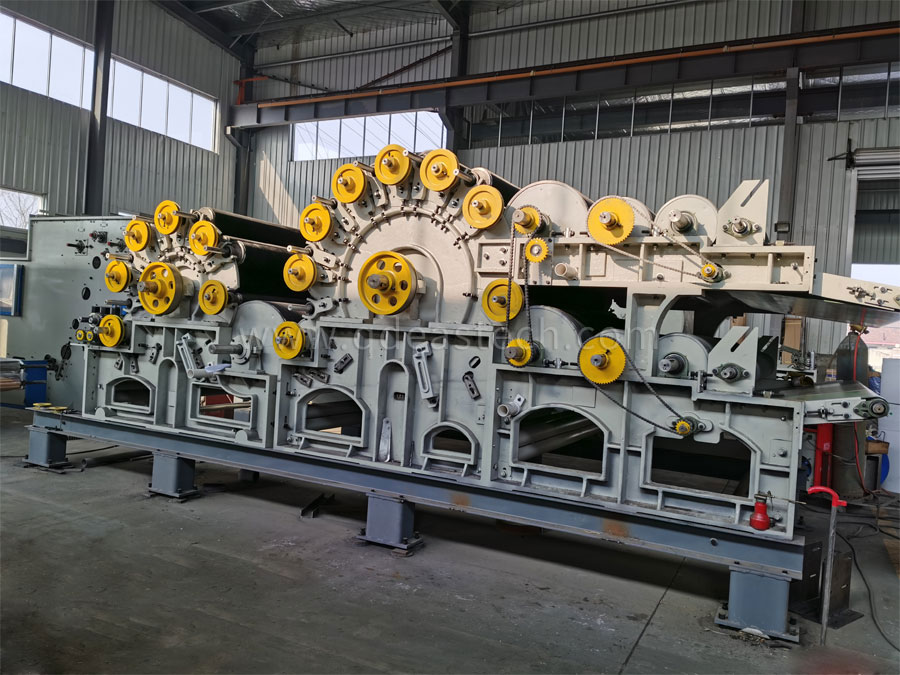

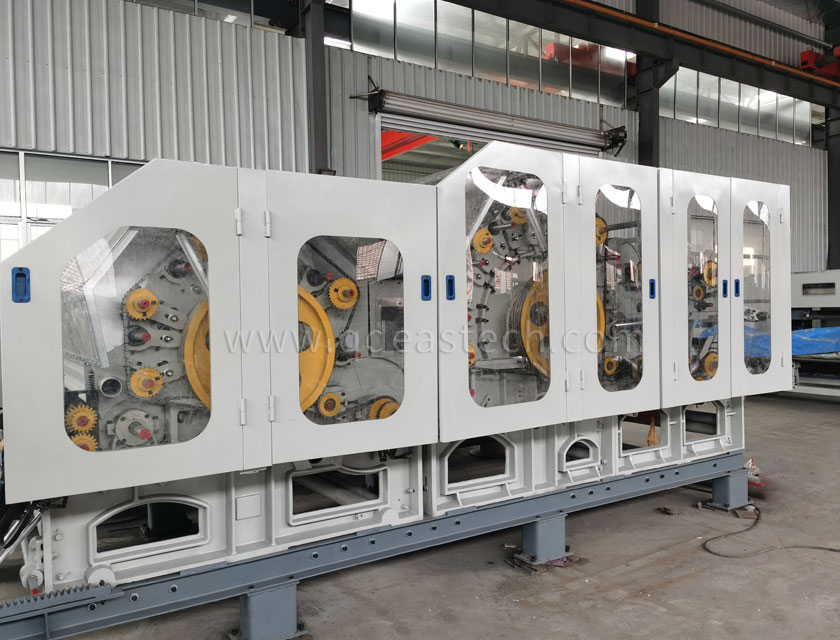

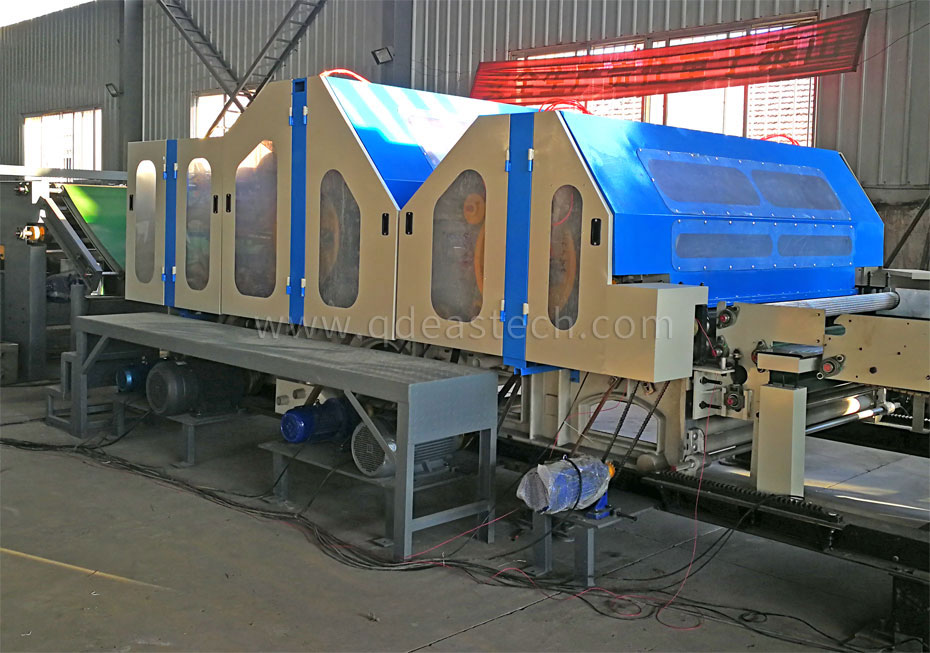

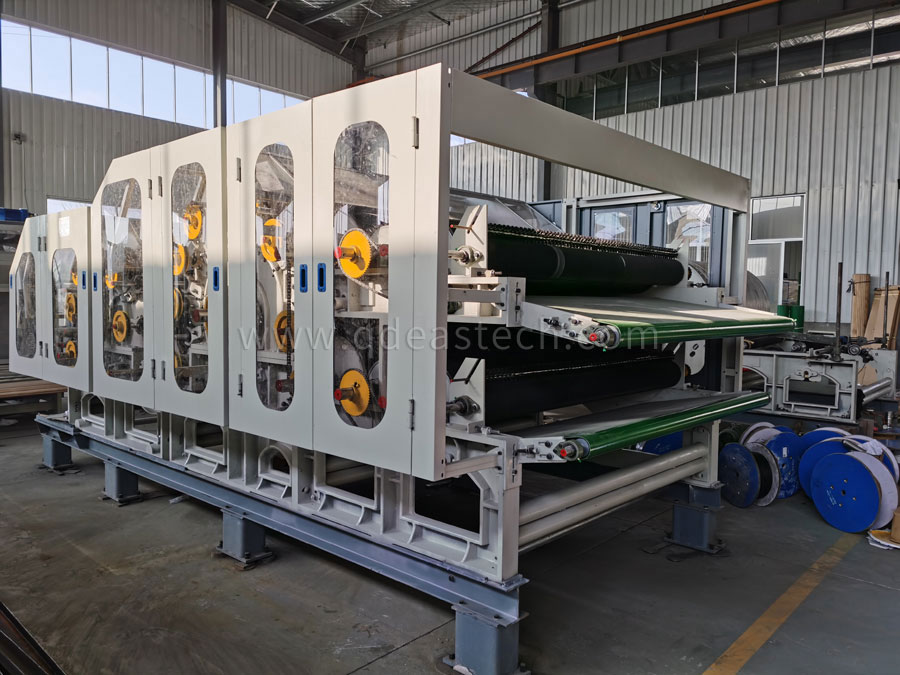

Double cylinder double doffer carding machine

①This system is used for individualization of fibers to web.
②The mechanical structure is divided into: Single Cylinder& Double Doffer Carding ,Double Cylinder& Double Doffer Carding ,Double Cylinder& Three Doffer Carding.
③In addition to dust suction fan, all other motors using frequency conversion speed alone.
④The unique feeding structure minimizes the delta area and maximizes the feeding rate.
⑤The protective cover adopts transparent organic glass, which is favorable for observation in operation.
⑥The bottom of the equipment is equipped with mounting bracket, which is beneficial to the installation balance and maintenance of The equipment.
⑦Equipment installed on both sides of the protective ladder, is conducive to personnel protection and equipment maintenance.
⑧All roller（Working rollers, cylinders，Doffers） have been balancing.
⑨Radial pulsation is less than 0.02mm
⑩Capacity:120-800kg/h
⑪Cylinder Speed =450rpm
Doffer=up to 50m/min
⑪Cylinder diameter:1230mm-1500mm
⑫Doffer diameter:495mm-700mm
⑬Working Width :1550mm-3800mm
⑭Power:23.7kw-90kw
