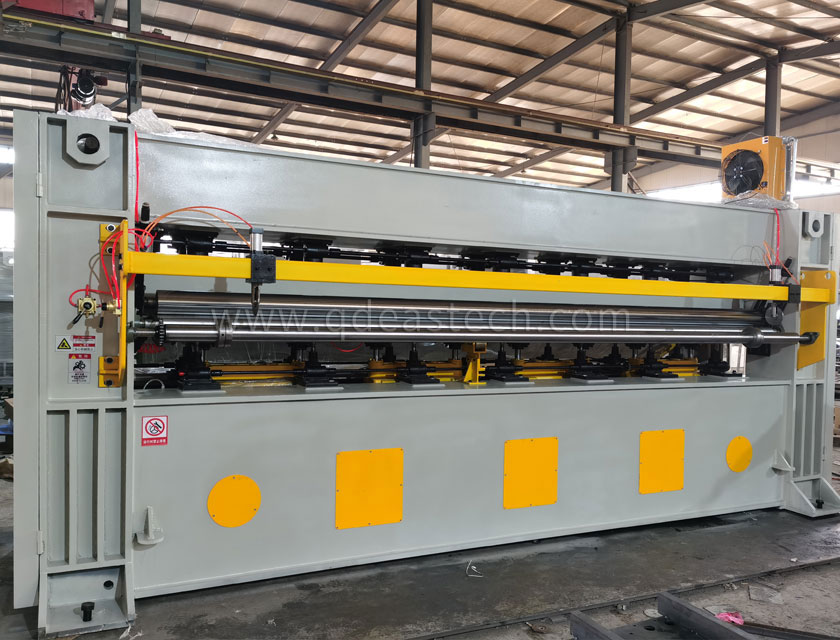

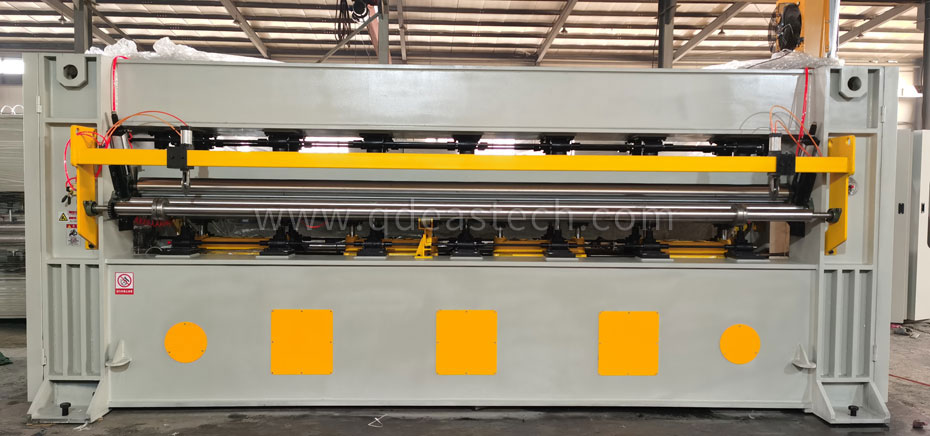

High-speed needle punching machine

Function
①It is suitable for the production of automotive interior felt, PU leather base cloth, geotextile, microfiber non-woven fabric, flame retardant non-woven fabric and filter non-woven fabric..
Main specification
②Working width: 2000-10000 mm
③Needle density: 5000-8000 n/m*1 board，5000-8000 n/m*2 boards
④Needle stroke:  25-40 mm
⑤Needle frequency: 800-1360 s/min
⑥Needling type: Single board，double boards
Structure
①Crank case complete with a horizontal and vertical balance system.
②Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems
③Magnesium alloy/ PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling pattern for needle board.
④Chrome plated delivery rollers with carved or patterned surface.
⑤Auto top and bottom dead center controlled stop.
