Polyester Acoustic Panels Acoustic Wall Panels production line

Polyester fiber Acoustic sheet production line is to produce flame-retardant polyester fiber sound-absorbing panels. Polyester fiber sound-absorbing panel is a high-quality material for engineering sound-absorbing and a new type of sound-absorbing decorative material. The polyester fiber sound-absorbing panel has a dense structure, and it has the properties of decoration, environmental protection, flame retardant and so on.
Qingdao Yisitaike Machinery Co., Ltd. has produced a high-quality flame-retardant polyester fiber sound-absorbing board production line after years of process research and development.
The flame-retardant sound-absorbing board produced by this production line has a stable flame retardant effect and sound-absorbing performance is superior to similar sound-absorbing products on the market. At the same time, it is environmentally friendly, formaldehyde-free and pollution-free.

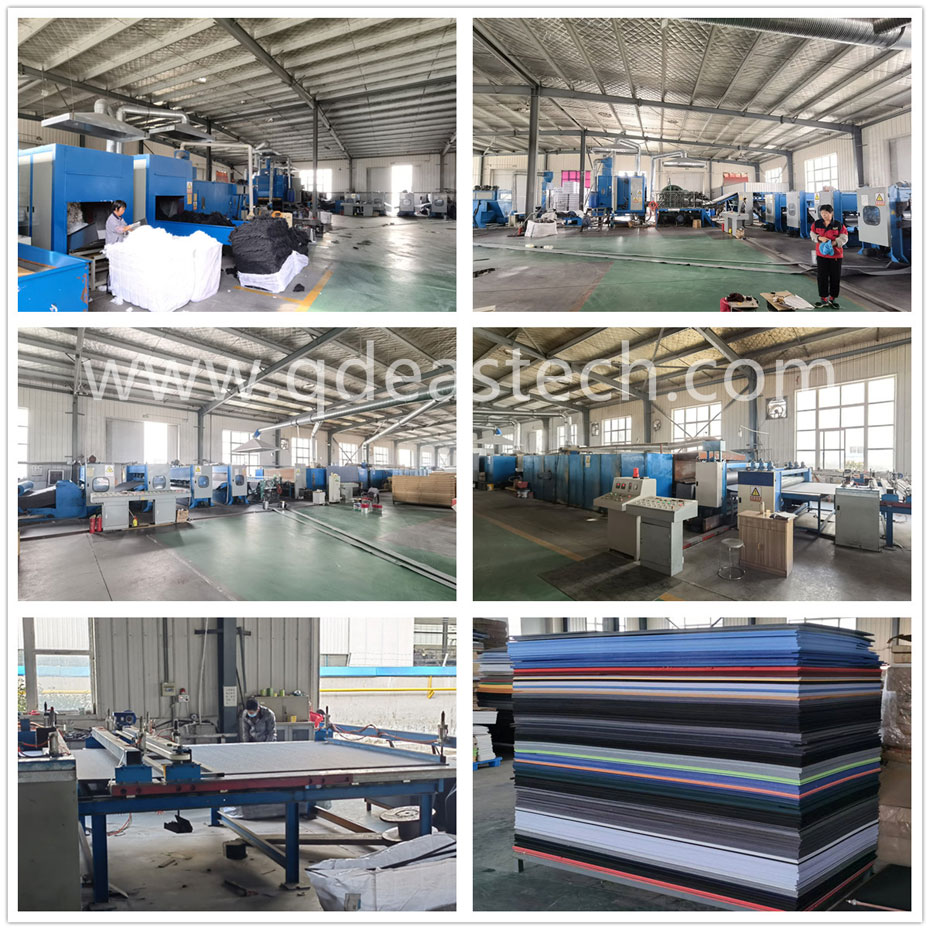

The polyester fiber Acoustic sheet production line is composed of as following machines:
Electronic Weighing Mixer→Chamber blender→Opener→Vibration Feeder→Carding machine→Cross lapper→Needle punching machine→Oven→Calender→Cooling shaping →Slicer.

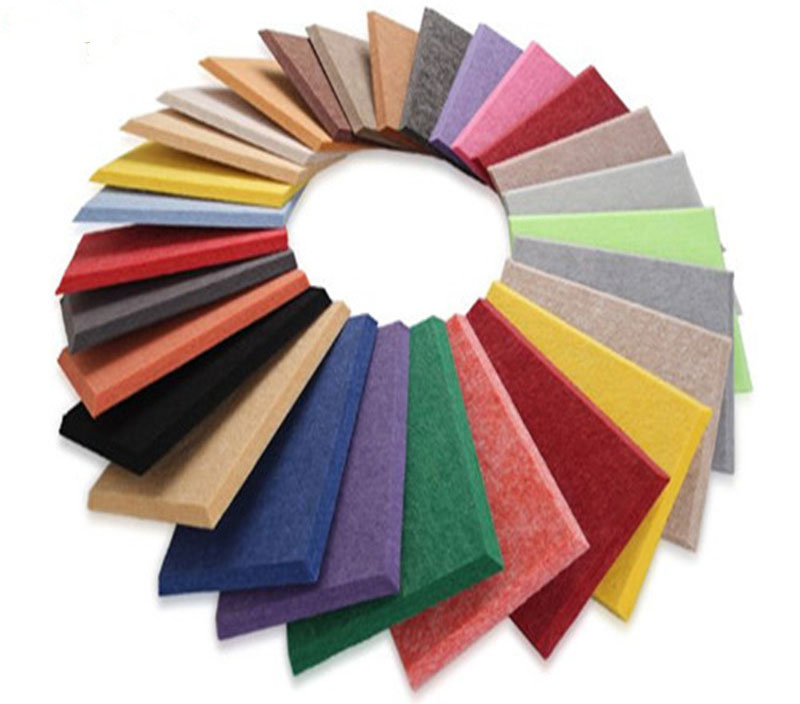

Polyester fiber sound-absorbing board has a wide range of applications, such as cinemas, KTVs, singing rooms, piano rooms, hotels, etc. It has the characteristics of diversified colors, sound absorption, environmental protection, flame retardant, lightweight, low cost, etc.
(For specific parameters, please call 8618669821608 (whatsapp, same number on WeChat)):
1. Electronic weighing Mixer
Used for weighing and mixing different polyester fibers.
2.Chamber blender
This machine is used to store and rerolling the raw material from the Mixer machine, which can ensure the normal order of the process feeding of the next working procedure.
3.Fine opener
This system is used to open the fibers more finely and feed it to the feeder.
The opening roller is corrected by dynamic balance, and the bouncing volume is small.
The steel frame is formed by laser cutting, and its shape variable is small.
Totally enclosed structure to reduce flying flowers during opening.
4.Vibration feeder
This system is used to feed the finely opened fibers(wool) at a regular and appropriated rate to the next system.
The Beaters is stable after running through balance correction.
The steel frame is formed by laser cutting, and its shape variable is small.
Install vent structure at the top to reduce production flying flowers.
The vibration plate can adjust and control the number of blanking materials.
5.Carding machine
The machine is suitable for carding fibers such as low melting point fiber, polyester, polypropylene and polyester into a network. It has the advantages of strong carding ability and high output.
All cylinders of the machine are processed by quenching, tempering and qualitative treatment, and then processed by precision.
6.Cross lapper
It is used to stack polyester fiber to and fro to form a mesh, which can achieve high weight and high thickness fiber mesh. The thickness of the finally formed Polyester Acoustic Panels ranges from 9mm-25mm.
7.Needle punching machine
Needle punching for Polyester Acoustic Panels
The movable needle beam is aluminum alloy movable beam.
The upper needle plate is made of PU coated needle plate, which is firm and durable. The needle plate is fixed by air bag clamping.
8.Oven
Thermal Bonding for Polyester Acoustic Panels.
Heating method: natural gas heating，Electric heating, heat transfer oil heating, diesel heating.
9.Calender
It is used for the secondary heating shaping of Polyester Acoustic Panels , making the product surface smoother.
Timing heating can be set and delayed shutdown to natural cooling.
10.Cooling shaping machine
Cool and shape the Polyester Acoustic Panels .
The surface of the roller is treated with Teflon coating.
12.Slicer
Used for slicing Polyester Acoustic Panels . Cutting specification 1220mm * 2440mm
