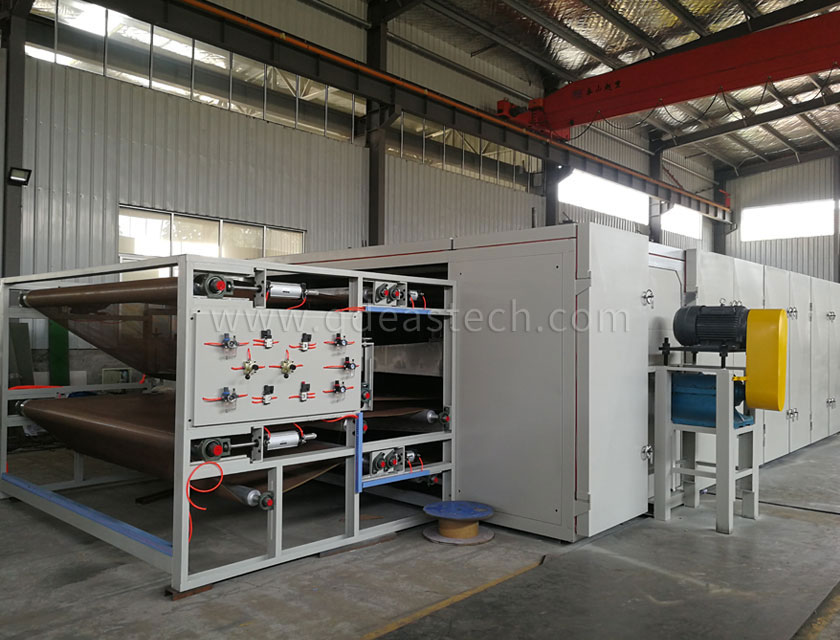

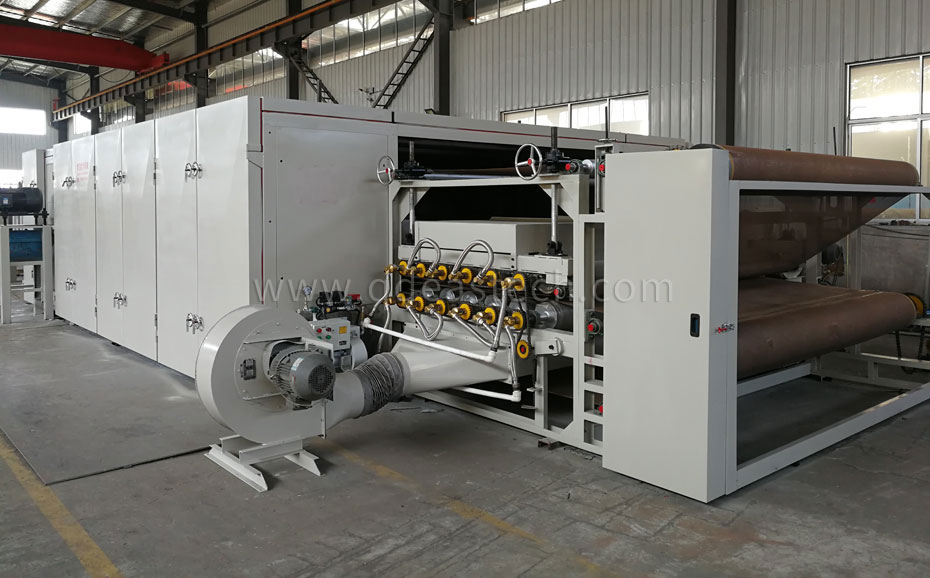

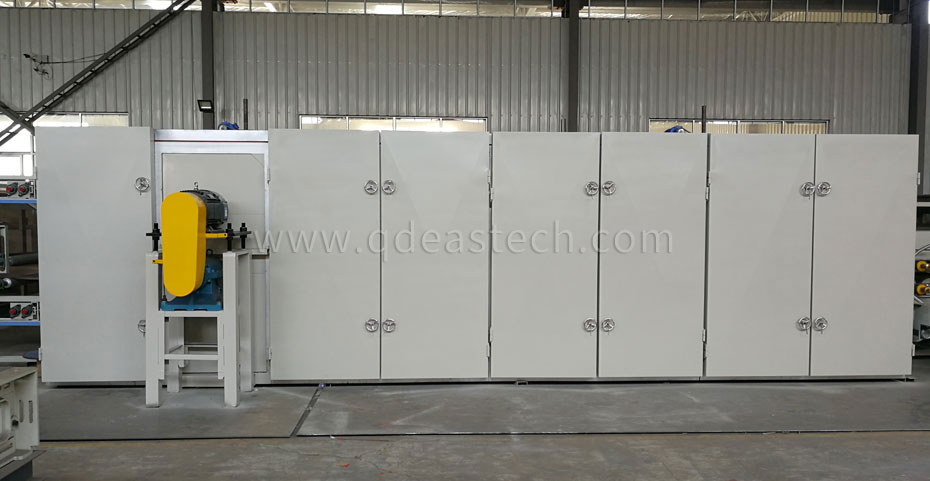

Formed felt and hard mattress Oven

Function
①This machine unit is used to dry cross laid material with surface&bottom chemical treatment to bond the material by hot air penetration.
Main Specification
②Working width: 3500-6500mm
③Heating Chamber Length: 8m ,10m,12m  (3layers)
④Heating temperature: 0-260℃
⑤Working speed: 0-20m/min
⑥Heating source: Hot oil circulation, gas heating by burner, diesel oil heating by burner
⑦Installed power: 110KW
Characteristics
⑧Compact design for heating chamber to achieve the best heat energy utilization.
⑨The spraying section is equipped with transparent cover to protect workshop environment from spray diffusion.
⑩Unique design for thermal insulation layer so as to achieve the best insulating result, reducing heat loss.
